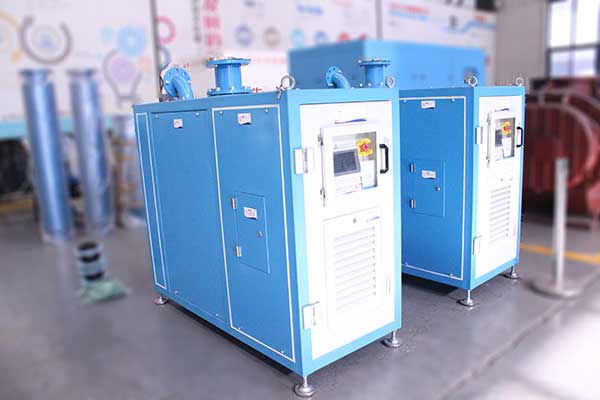

SNTurbo Air Suspension centrifugal Blower

The air suspension centrifugal blower is a device that compresses and conveys gases by centrifugal force, and is widely used in air treatment, ventilation, smoke exhaust, industrial production and other fields.
Contact Us
  • Product details
  • Manufacturer Strength
Take a Closer Look

Product introduction

Air suspension centrifugal blower is a kind of high efficiency and energy saving single high speed centrifugal blower. Its core technology adopts aircraft turbine engine technology and is optimized for civil use, making it easier to use, repair and maintain.

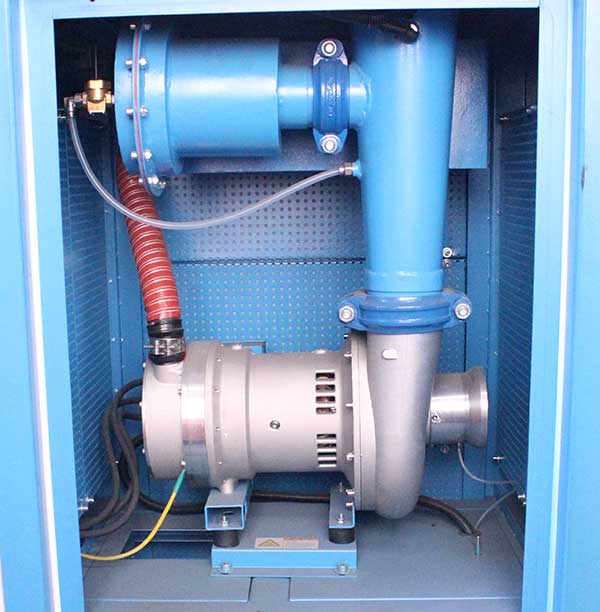

Air Suspension centrifugal Blower
centrifugal Blower

The working principle of air suspension centrifugal blower

The working principle of this equipment is to use centrifugal force to accelerate the gas to high-speed rotating impeller, and then compress and transport the gas to pipes or equipment through the impeller and the inlet guide blades. Compared with other fans, air-suspended centrifugal blower has the advantages of large air delivery, high pressure, high efficiency, stable operation, and low noise.

Product Advantages

1.High efficiency and energy saving can reduce power consumption by more than 30% compared with traditional Roots blower.
2.Low noise, no vibration, noise below 80dB, no foundation or foot bolt required.
3.Long life, semi-permanent, using air suspension bearing technology, more than 20 years semi-permanent, no decay of efficiency during the life cycle.
4.No lubrication, maintenance-free, 100% oil-free air floating bearing system.
5.Easy to operate, intelligent control intelligence

Blower Dimension

ModelLWH
SN Turbo3070016001380
SN Turbo5070016001380
SN Turbo7585017751670
SN Turbo10085017751670
SN Turbol2585017751670
SN Turbo150115019751880
SN Turbo200115019751880
SN Turbo250115019751877
SN Turbo300130024752200
SN Turbol00H180010001780
SN Turbol25H180010001780
SN Turbo150H200011502000
SN Turbol75H200011502000
SN Turbo200H200011502000
SN Turbo250H247513002200
SN Turbo270H247513002200
SN Turbo300H247513002200
SN Turbo350H247513002200

Recommended

SNLT roots blower
SNLT roots blower

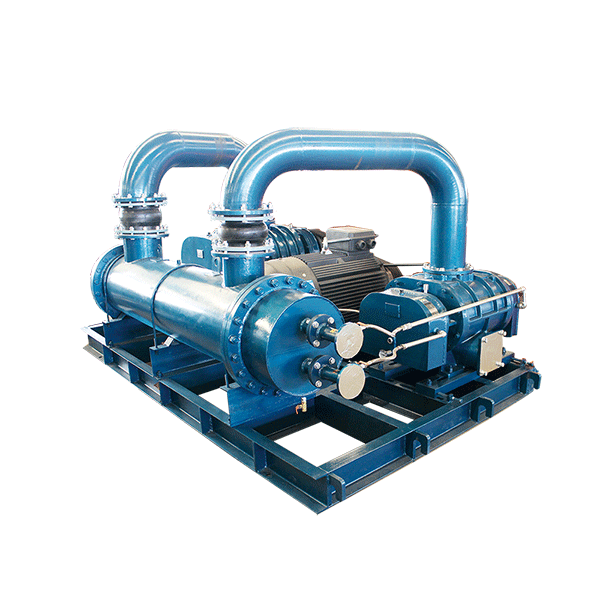

TN Two-stage tandem roots blower
TN Two-stage tandem roots blower
2 LOBE ROOTS BLOWER PUMP
2 LOBE ROOTS BLOWER PUMP

Specifications

Model SN Turbo30 SN Turbo50 SN Turbo75 SN Turbo100 SN Turbo125 SN Turbo150 SN Turbo200 SN Turbo250 SN Turbo300 SN Turbo400
Power(kw) 22 37 55 75 90 110 150 185 220 300
40kpa Exhaust volume(m³/min) 24 40 61 82 94 125 165 185 266 331
60kpa Exhaust volume(m³/min) 20 34 51 69 82 105 140 160 210 272
80kpa Exhaust volume(m³/min) 17 28 42 55 71 84 109 135 164 216
100kpa Exhaust volume(m³/min) 13 22 34 45 53 65 87 105 133 172
120kpa Exhaust volume(m³/min) 11 19 29 39 48 58 78 97 117 156
Model SN Turbo100H SN Turbo125H SN Turbo150H SN Turbo175H SN Turbo200H SN Turbo250H SN Turbo270H SN Turbo300H SN Turbo350H
Power(kw) 75 90 110 132 160 185 200 220 250
300kpa Exhaust volume(m³/min) 20.3 27.65 31.24 35.2 47.6 49.87 52.2 54.5 62.3
400kpa Exhaust volume(m³/min) 19.65 25.75 29.01 33.2 44.1 47.12 49.3 53.3 58.9
500kpa Exhaust volume(m³/min) 19.15 23.61 27.32 31.25 41.31 45.8 46.75 52 56.1
