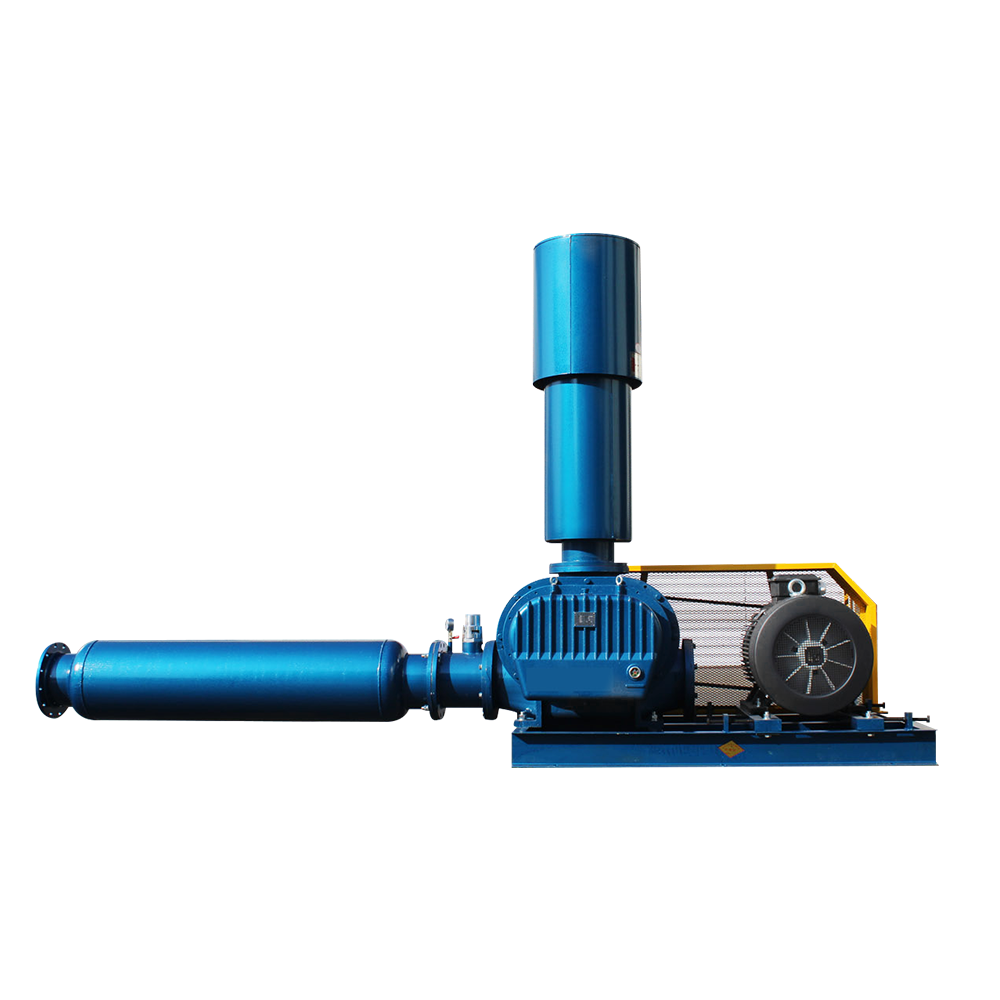

NSR-Ⅱ Roots Blower
- Caliber(mm):Φ40-Φ350mm
- Capacity(m³/min):0.3-180m³/min
- Pressure (kpa): -53.3～98.8kpa
-
10 YEARS WARRANTY
-
ENVIRONMENT FRIENDLY
-
DOWNLOAD PDF
- Product details
- Manufacturer Strength
Introduction
The NSR-Ⅱ roots blower has low noise, high efficiency, easy operation, high manufacturing precision, can operate under high pressure for a long time, high efficiency and energy saving at the leading level in China. It is widely used in petrochemical,building materials, electric power, smelting, fertilizer, mining, port, light textile, food, paper making, aquaculture and sewage treatment, environmental protection industry and many other fields, mostly used to transport air.
Structural Features
The inlet and outlet of the blower adopt the imitation spiral inlet and outlet method. When the impeller is rotating, the top tab is cut into the casing by the spiral line, forming a cavity that opens and closes sequentially, thus reducing the pulsation of the blower.

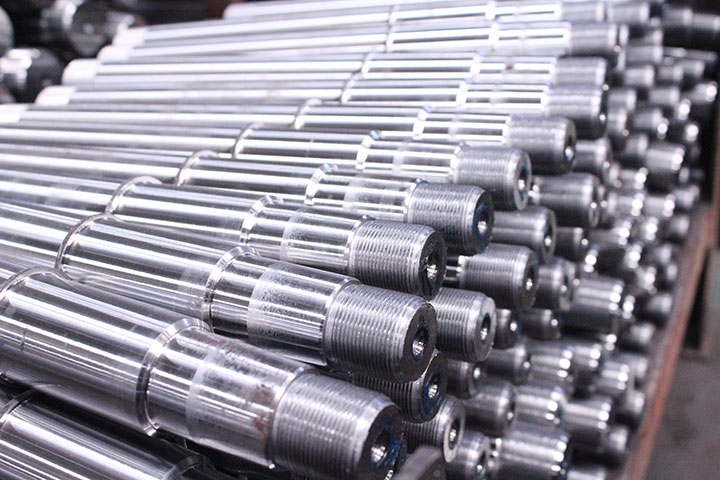

Machining Accuracy
The rotor adopts more advanced profile, the area utilization coefficient reaches 0.53, the volume efficiency increases by 5%~8% at 98kPa, and the noise decreases by about 5dB(A).
Measurement Accuracy
The gears are ground with high precision to reduce the mechanical noise, and the precision of the gears is the grade 5 precision required by GB/T 10095-2008.
Three-lobe Roots blower construction diagram and material
| No. | Name | Material | Qty |
|---|---|---|---|
| 1 | Sub oil tank | HT250 | 1 |
| 2 | Oil seal | Fluoroelastomer | 2 |
| 3 | Round nut | 35 | 4 |
| 4 | Drive end oil disc | Q235A | 1 |
| 5 | Drive end bearing press sleeve | Q235A | 1 |
| 6 | Bearing pressure plate | Q235A | 1 |
| 7 | Bearing | SUJ2 | 4 |
| 8 | Wall plate | HT250 | 2 |
| 9 | Seal ring | Fluoroelastomer | 4 |
| 10 | Positioning pins | 45 | 4 |
| 11 | Housing | HT250 | 1 |
| 12 | Impeller | HT250 | 2 |
| 13 | Main shaft | 45 | 1 |
| 14 | Slave shaft | 45 | 1 |
| 15 | Labyrinth seal | Q235A | 4 |
| 16 | Gears | 20CrMnTi | 2 |
| 17 | Flat washers | Q235A | 1 |
| 18 | Tooth end oil dump disc | Q235A | 1 |
| 19 | Stop washers | Q235A | 2 |
| 20 | Main oil tank | HT250 | 1 |
| 21 | Oil marker | Plexiglas | 4 |
| 22 | Wire plug | 35 | 2 |
NSR-Ⅱ Other products
Applications
-
Quality Assurance
Our company uses simulated working condition experiments for each blower we produce, and each blower undergoes strict testing before it leaves the factory.
