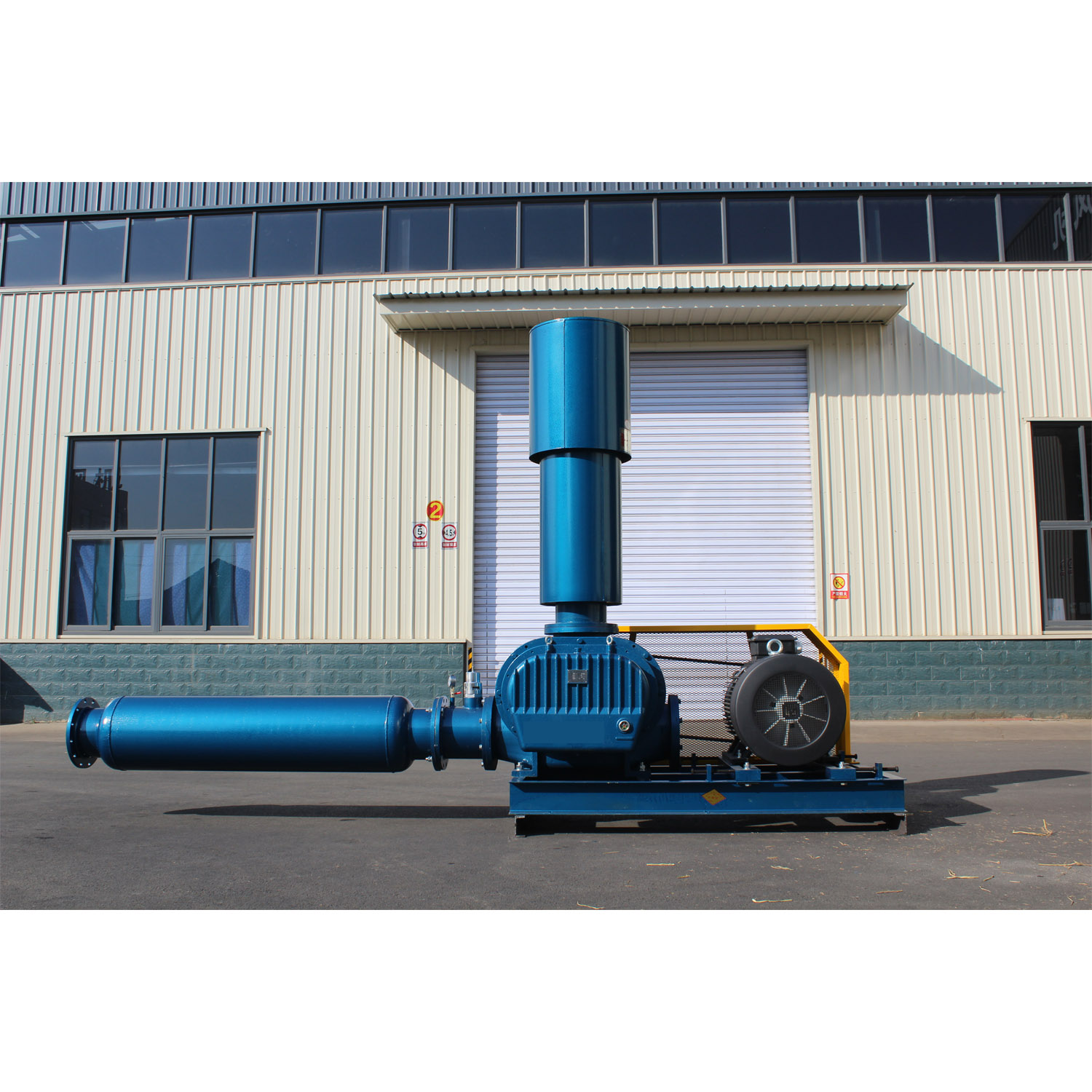

NSR-Ⅱ-H High Pressure Roots Blower
- Caliber(mm):Φ40-Φ350mm
- Capacity(m³/min):0.3-180m³/min
- Pressure (kpa): ≥63.7kpa
-
10 YEARS WARRANTY
-
ENVIRONMENT FRIENDLY
-
DOWNLOAD PDF
- Product details
- Manufacturer Strength
Structural Features
High pressure blower when the boost pressure is greater than 63.7kPa.
When 73.5kPa<Rising pressure≤98kPa, welded oil tank is used to facilitate heat dissipation and the tank needs water cooling
Characteristics of High-Pressure Roots Blower
- 1. High-pressure capability: A high-pressure Roots blower can provide high gas pressure, typically reaching above 1.0 bar, suitable for processes that require high-pressure gas.
- 2. High efficiency: The gear design of the Roots blower provides efficient gas transport capabilities, reducing energy consumption.
- 3. Low noise: Since the Roots blower has no contact during operation, the noise is relatively low.
- 4. Oil-free pollution: High-pressure Roots blowers use oil-free lubrication technology, so there is no need to add extra lubricant, avoiding oil pollution.
- 5. Wide application range: High-pressure Roots blowers are suitable for various industrial fields, such as water treatment, sewage treatment, petrochemicals, pharmaceuticals, food, etc.
- 6. Simple maintenance: The Roots blower has a simple structure and few parts, making maintenance relatively easy, with a long service life.
Three-lobe Roots blower construction diagram and material
| No. | Name | Material | Qty |
|---|---|---|---|
| 1 | Sub oil tank | HT250 | 1 |
| 2 | Oil seal | Fluoroelastomer | 2 |
| 3 | Round nut | 35 | 4 |
| 4 | Drive end oil disc | Q235A | 1 |
| 5 | Drive end bearing press sleeve | Q235A | 1 |
| 6 | Bearing pressure plate | Q235A | 1 |
| 7 | Bearing | SUJ2 | 4 |
| 8 | Wall plate | HT250 | 2 |
| 9 | Seal ring | Fluoroelastomer | 4 |
| 10 | Positioning pins | 45 | 4 |
| 11 | Housing | HT250 | 1 |
| 12 | Impeller | HT250 | 2 |
| 13 | Main shaft | 45 | 1 |
| 14 | Slave shaft | 45 | 1 |
| 15 | Labyrinth seal | Q235A | 4 |
| 16 | Gears | 20CrMnTi | 2 |
| 17 | Flat washers | Q235A | 1 |
| 18 | Tooth end oil dump disc | Q235A | 1 |
| 19 | Stop washers | Q235A | 2 |
| 20 | Main oil tank | HT250 | 1 |
| 21 | Oil marker | Plexiglas | 4 |
| 22 | Wire plug | 35 | 2 |
